SPMT 1806EDERNB2 PR1230 Grade PVD Carbide, Indexable Milling Insert
$44.57
(No reviews yet)
Write a Review
SPMT 1806EDERNB2 PR1230 Grade PVD Carbide, Indexable Milling Insert
SPMT 1806EDERNB2 PR1230 Grade PVD Carbide, Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel
- Tool Style:
- SPMT
- Insert Size:
- 1806
- Chipbreaker:
- EDER-NB2
- Insert Grade:
- PR1230
- Material:
- Carbide
- Coating Process:
- PVD

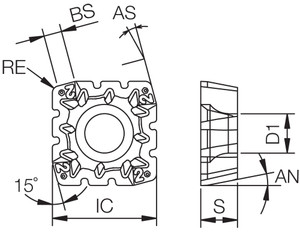

- [IC] Inscribed Circle (mm):
- 18.00
- [S] Thickness (mm):
- 6.35
- [RE] Corner Radius (mm):
- 1.20
- Application:
- Facing|Heavy Milling|Shouldering|Slotting
- Hand:
- Right-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 90
- Primary Workpiece Material:
- (P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
- Insert Shape:
- 90 Degree Square
- Number of Cutting Edges:
- 4
- Cutting Range:
- Roughing
- Insert Holding Method:
- Screw
- Feature 1:
- Insert for Heavy Milling, Facing, Shouldering, Slotting
- Feature 2:
- Honed Edge with 4 Cutting Edges
- Feature 3:
- Superior wear and oxidation resistant MEGACOAT on a special tough carbide substrate
- Feature 4:
- Application: Stable and high feed rate milling and drilling of steel
- ANSI Part Number:
- SPMT1806EDERNB2PR1230
- ISO Part Number:
- SPMT1806EDER-NB2
- US Stock:
- 50
- Worldwide Stock:
- 80
- Old Material Number:
- 8832043
- Compatible Toolholder (Partial):
- MSRS15…
- [IC] Inscribed Circle:
- 0.709"
- [S] Thickness:
- 1/4"
- [RE] Corner Radius:
- 3/64"
