SPMT 1806EDERNB2 PR1825 Grade PVD Carbide, Indexable Milling Insert

SPMT 1806EDERNB2 PR1825 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLT00175
$44.57
(No reviews yet)
Width:
2.44 (in)
Height:
0.55 (in)
Depth:
5.12 (in)
Current Stock:
Adding to cart… The item has been added
Description
SPMT 1806EDERNB2 PR1825 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel
Additional Information
Tool Style:
SPMT
Insert Size:
1806
Chipbreaker:
EDER-NB2
Insert Grade:
PR1825
Material:
Carbide
Coating Process:
PVD

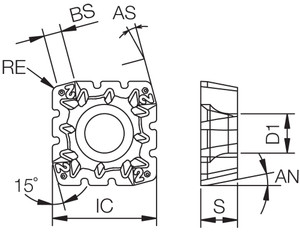

[IC] Inscribed Circle:
0.709"
[IC] Inscribed Circle (mm):
18.00
[S] Thickness:
1/4"
[S] Thickness (mm):
6.35
[RE] Corner Radius:
3/64"
[RE] Corner Radius (mm):
1.20
Application:
Facing|Heavy Milling|Shouldering|Slotting
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(P) Mold Steel
Insert Shape:
90 Degree Square
Number of Cutting Edges:
4
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
MSRS Milling Insert for Facing, Heavy Milling, Shouldering, Slotting
Feature 2:
Honed Edge with 4 Cutting Edges
Feature 3:
Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling
Feature 4:
Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
Feature 5:
Excellent wear resistance oriented grade for steel milling applications
ANSI Part Number:
SPMT1806EDERNB2PR1825
ISO Part Number:
SPMT1806EDER-NB2
Compatible Toolholder (Partial):
MSRS15…
