SRCPL2020B12A20 Left-Hand, Positive Rake, Square Shank Boring Bar for Bearing Machining

SRCPL2020B12A20 Left-Hand, Positive Rake, Square Shank Boring Bar for Bearing Machining

SKU:
THC01067
|
UPC:
4960664223398
$242.21
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
SRCPL2020B12A20 Left-Hand, Positive Rake, Square Shank Boring Bar for Bearing Machining with a 20.00mm Minimum Bore Diameter and a 20.00mm Square Shank
Additional Information
Tool Style:
SRCP…B
Material:
Steel
Application:
Bearing Machining|Boring
Hand:
Left-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
n/a
Insert Shape:
Round
[DMIN] Minimum Bore Diameter (mm):
20.00
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Great for Bearing Machining
Feature 2:
Metric Size
Feature 3:
Compatible with RPMT1203M0-BB inserts
ANSI Part Number:
SRCPL2020B12A20
ISO Part Number:
SRCPL2020B-12-A20
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
RPMT1203M0-BB
Old Material Number:
8813855
Insert Screw:
SB-4TR
Wrench (for Insert Screw):
FT-15

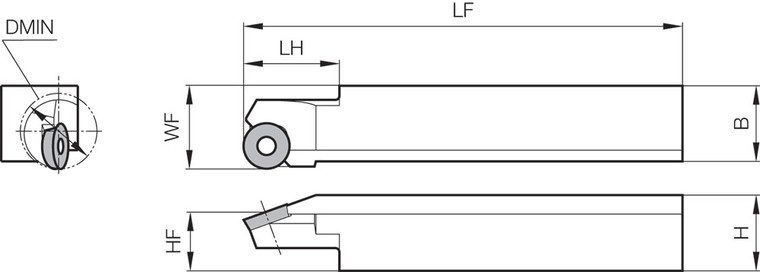

[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
25.00
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.7874
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
0.9843
Series Description (PeopleSoft):
SRCP Square Shank Boring Bar
Series Description:
SRCP Square Shank Boring Bar
