SS12DRC110M8, DRC Magic Drill 11.00-11.49mm Cutting Diameter, 8xD, Replaceable Tip Drill
$621.66
(No reviews yet)
Write a Review
SS12DRC110M8, DRC Magic Drill 11.00-11.49mm Cutting Diameter, 8xD, Replaceable Tip Drill
SS12DRC110M8, DRC Magic Drill 11.00-11.49mm Cutting Diameter, 12.00mm Diameter Straight Shank, Coolant-Through Replaceable Tip Drill
- Tool Style:
- SS…DRC
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand

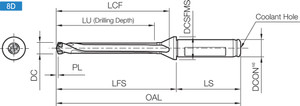

- [DCN] Cutting Diameter Minimum (mm):
- 11.00
- [DCX] Cutting Diameter Maximum (mm):
- 11.49
- Drill Depth by Diameter Ratio:
- 8xD
- [LU] Usable Length (mm):
- 92.00
- Number of Inserts:
- 1
- Number of Flutes:
- 2
- Shank Type:
- Straight Shank
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 12.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Self-Clamping Design Makes Replacement Possible on the Machine
- Feature 2:
- Self-Centering Design - The S-curve top shape geometry of the insert known as the “Self-Centering design” enables smooth drilling, lowers cutting forces and produces a high quality surface finish
- Feature 3:
- Multiple Helical Angle Flute Provide superior drill body stiffness and chip evacuation
- Feature 4:
- Direct Cooling Design - The coolant is fed directly into the inserts cutting face, cooling the top of the drill and preventing chip adhesion, which allows for quick and smooth chip evacuation
- ANSI Part Number:
- SS12DRC110M8
- ISO Part Number:
- SS12-DRC110M-8
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- DC1100M-SC ~ DC1140M-SC
- Old Material Number:
- 8827450
- Wrench (for Insert Screw):
- WDRC10, (Universal Wrench WDRC17 Sold Separately)
- Product Notes 1:
- *Universal WDRC17 wrench can be used for WDRC8~17 sizes.
- [DC] Cutting Diameter (Decimal Inch):
- 0.4331 - 0.4524
- [DC] Cutting Diameter (mm):
- 11.00 - 11.49
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.4331
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 0.4524
- [LU] Usable Length (Decimal Inch):
- 3.6221
- [DCON] Connection Diameter (Decimal Inch):
- 0.4724
- [LS] Shank Length (mm):
- 45.00
- [LS] Shank Length (Decimal Inch):
- 1.7717
- [OAL] Overall Length (mm):
- 155.50
- [OAL] Overall Length (Decimal Inch):
- 6.1221
