SS14DRA135M3, DRA Magic Drill 13.50-13.99mm Cutting Diameter, 3xD, Replaceable Tip Drill
$336.93
(No reviews yet)
Write a Review
SS14DRA135M3, DRA Magic Drill 13.50-13.99mm Cutting Diameter, 3xD, Replaceable Tip Drill

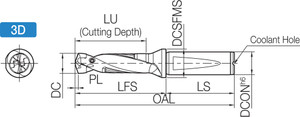

SS14DRA135M3, DRA Magic Drill 13.50-13.99mm Cutting Diameter, 14.00mm Diameter Straight Shank, Coolant-Through Replaceable Tip Drill
- Tool Style:
- SS…DRA
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand
- [DCN] Cutting Diameter Minimum (mm):
- 13.50
- [DCX] Cutting Diameter Maximum (mm):
- 13.99
- Drill Depth by Diameter Ratio:
- 3xD
- [LU] Usable Length (mm):
- 42.00
- Number of Inserts:
- 1
- Number of Flutes:
- 2
- Shank Type:
- Straight Shank
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 14.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Low Cutting Force Design Improves Hole Accuracy
- Feature 2:
- Optimal Web Thickness Limits Deflection
- Feature 3:
- Fine Chip Breaking Even in Deep Hole Drilling Applications
- Feature 4:
- Easy Insert Replacement
- Feature 5:
- Long Tool Life and Stable Machining of Various Workpieces
- ANSI Part Number:
- SS14DRA135M3
- ISO Part Number:
- SS14-DRA135M-3
- Compatible Inserts (Partial):
- DA1350M-… ~ DA1390M-…
- Old Material Number:
- 8608125
- Clamp Screw:
- HS-2534TRP
- Wrench (for Clamp Screw):
- FTP-5
- Tightening Torque:
- 0.5 Nm (4.4 in/lb)
- [DC] Cutting Diameter (Decimal Inch):
- 0.5315 - 0.5508
- [DC] Cutting Diameter (mm):
- 13.50 - 13.99
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.5315
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 0.5508
- [LU] Usable Length (Decimal Inch):
- 1.6535
- [DCON] Connection Diameter (Decimal Inch):
- 0.5512
- [LS] Shank Length (mm):
- 45.00
- [LS] Shank Length (Decimal Inch):
- 1.7717
- [OAL] Overall Length (mm):
- 107.00
- [OAL] Overall Length (Decimal Inch):
- 4.2126
