STLNR 1010K09FF, Indexable Turning Toolholder

STLNR 1010K09FF, Indexable Turning Toolholder

SKU:
THC09348
|
UPC:
4960664532117
$91.82
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
STLNR 1010K09FF, Right-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning Applications
Additional Information
Tool Style:
STLN
Material:
Steel
Application:
External Turning|Small Parts Machining
Hand:
Right-Hand
Rake:
Negative

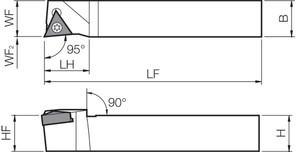

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
60 Degree Triangle
[H] Shank Height (mm):
10.00
[B] Shank Width (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Swiss, External Turning
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand TNGU182… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
STLNR1010K09FF
ISO Part Number:
STLNR1010K-09FF
US Stock:
0
Worldwide Stock:
7
Compatible Inserts (Partial):
TNGU182…
Old Material Number:
8825501
Insert Screw:
SB-2570TR
Wrench (for Insert Screw):
LTW-8SS
[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
15.00
[H] Shank Height (Decimal Inch):
0.3937
[B] Shank Width (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
0.5906
Series Description (PeopleSoft):
Double-sided Swiss System
Series Description:
Double-sided Swiss System
