STVPR 16 4, External Threading Toolholder

STVPR 16 4, External Threading Toolholder

SKU:
THC89346
$92.95
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
STVPR 16 4, Right-Hand, External Threading Toolholder with a 1.0000" Shank Height and Compatible with TPMC43NV…, TNMC43NV Inserts
Additional Information
Tool Style:
STVP
Material:
Steel
Application:
External Threading
Hand:
Right-Hand
Thread Type:
External
[H] Shank Height (mm):
25.40
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Threading
Feature 3:
Screw Insert Holding Design
Feature 4:
Compatible with Right-Hand TPMC43NV…, TNMC43NV Inserts
ANSI Part Number:
STVPR164
ISO Part Number:
STVPR164
US Stock:
12
Worldwide Stock:
0
Compatible Inserts (Partial):
TPMC43NV…, TNMC43NV
Old Material Number:
8603967

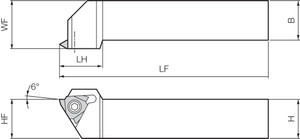

[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
24.13
[H] Shank Height (Decimal Inch):
1.0000
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
0.9500
