STWSR1010F15T Right-Hand, Micro Boring Bar Toolholder

STWSR1010F15T Right-Hand, Micro Boring Bar Toolholder

SKU:
THC04142
$115.19
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
STWSR1010F15T Right-Hand Micro Bar Toolholder with a 10.00mm Square Shank for Micro Boring, Micro Grooving, Micro Face Grooving, Micro Threading Applications
Additional Information
Tool Style:
STWS
Material:
Steel
Application:
Micro Boring|Micro Face Grooving|Micro Grooving|Micro Threading
Hand:
Right-Hand

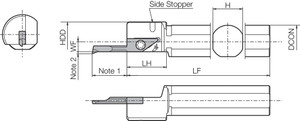

[LU] Usable Length (mm):
3.00
[H] Shank Height (mm):
10.00
[B] Shank Width (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Twin Bar
Feature 2:
Share shank (L-shape) for vertical inserts
Feature 3:
For TWBTR…, TWFGTR… style inserts
ANSI Part Number:
STWSR1010F15T
ISO Part Number:
STWSR1010F-15T
Old Material Number:
8832853
Insert Screw:
SB-3080TR
Wrench (for Insert Screw):
LTW-10S
Compatible Bars (Partial):
TWBTR…, TWFGTR…
[LF] Functional Length (mm):
85.00
[LU] Usable Length (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.3937
[B] Shank Width (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
3.3465
