SVJBL 62JXFF, Indexable Turning Toolholder

SVJBL 62JXFF, Indexable Turning Toolholder

SKU:
THC89702
|
UPC:
4960664646562
$83.96
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
SVJBL 62JXFF, Left-Hand, Positive Rake, 93 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Copying Applications
Additional Information
Tool Style:
SVJB-FF
Material:
Steel
Application:
Copying|External Turning|Small Parts Machining
Hand:
Left-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
9.53
[B] Shank Width (mm):
9.525
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Copying
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand VBMT22…, VBGT22…, VBET22…, VBGW22… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
SVJBL62JXFF
ISO Part Number:
SVJBL6-2JXFF
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
VBMT22…, VBGT22…, VBET22…, VBGW22…
Old Material Number:
8835657

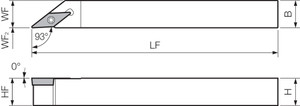

[LF] Functional Length (mm):
120.65
[H] Shank Height (Decimal Inch):
0.3752
[B] Shank Width (Decimal Inch):
0.3750
[LF] Functional Length (Decimal Inch):
4.7500
Series Description (PeopleSoft):
Swiss Turning Holder
Series Description:
Swiss Turning Holder
