SVPBL 2020K11, Indexable Turning Toolholder

SVPBL 2020K11, Indexable Turning Toolholder

SKU:
THC07357
|
UPC:
4960664110452
$113.55
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
SVPBL 2020K11, Left-Hand, Positive Rake, 117.5 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Facing, Copying, Undercutting Applications
Additional Information
Tool Style:
SVPB
Material:
Steel
Application:
Copying|External Turning|Facing|Small Parts Machining|Undercutting
Hand:
Left-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
117.5
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Facing, Copying, Undercutting
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand VBMT22…, VBGT22…, VBET22…, VBGW22… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
SVPBL2020K11
ISO Part Number:
SVPBL2020K-11
US Stock:
0
Worldwide Stock:
9
Compatible Inserts (Partial):
VBMT22…, VBGT22…, VBET22…, VBGW22…
Old Material Number:
8813901
Insert Screw:
SB-2570TR
Wrench (for Insert Screw):
FT-8

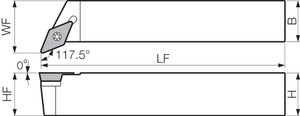

[LF] Functional Length (mm):
125.00
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
Series Description (PeopleSoft):
Screw-Down Turning Holder
