SVPBR 2020K16N, Indexable Turning Toolholder

SVPBR 2020K16N, Indexable Turning Toolholder

SKU:
THC07324
|
UPC:
4960664487301
$113.55
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description

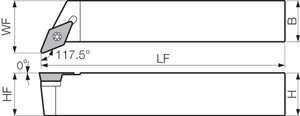

SVPBR 2020K16N, Right-Hand, Positive Rake, 117.5 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Facing, Copying, Undercutting Applications
Additional Information
Tool Style:
SVPB
Material:
Steel
Application:
Copying|External Turning|Facing|Small Parts Machining|Undercutting
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
117.5
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Facing, Copying, Undercutting
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand VBMT33…, VBGT33…, VBET33…, VBGW33…, VCGT33… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
SVPBR2020K16N
ISO Part Number:
SVPBR2020K-16N
US Stock:
0
Worldwide Stock:
29
Compatible Inserts (Partial):
VBMT33…, VBGT33…, VBET33…, VBGW33…, VCGT33…
Old Material Number:
8842632
Insert Screw:
SB-40125TRN
Shim:
SVN-32N*
Shim Screw:
SS-4N
Wrench (for Insert Screw):
FT-15
Wrench (for Shim Screw):
LW-4
[LF] Functional Length (mm):
125.00
Product Notes 1:
*Shim SVN-32S (sold separately) is recommended when using inserts with a corner-R (RE) of 0.008" or 1/64".
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
