SVPPR 1010JX08FF, Indexable Turning Toolholder

SVPPR 1010JX08FF, Indexable Turning Toolholder

SKU:
THC07077
$91.82
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
SVPPR 1010JX08FF, Right-Hand, Positive Rake, 117.5 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Facing, Copying, Undercutting Applications
Additional Information
Tool Style:
SVPP-FF
Material:
Steel
Application:
Copying|External Turning|Facing|Small Parts Machining|Undercutting
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
117.5
[LU] Usable Length (mm):
12.00
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
10.00
[B] Shank Width (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Facing, Copying, Undercutting
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand VPGT1515…, VPET1515… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
SVPPR1010JX08FF
ISO Part Number:
SVPPR1010JX-08FF
Compatible Inserts (Partial):
VPGT1515…, VPET1515…
Old Material Number:
8835124
Insert Screw:
SB-2050TR
Wrench (for Insert Screw):
FT-6

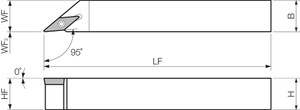

[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
12.00
[LU] Usable Length (Decimal Inch):
0.4724
[H] Shank Height (Decimal Inch):
0.3937
[B] Shank Width (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.4724
