TBGT 12105L TN60 Grade Uncoated Cermet, Indexable Turning Insert

TBGT 12105L TN60 Grade Uncoated Cermet, Indexable Turning Insert

SKU:
TSJ01500
|
UPC:
4960664054862
$17.37
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
TBGT 12105L TN60 Grade Uncoated Cermet, 5 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel
Additional Information
Tool Style:
TBGT
Insert Size:
12105
Insert Grade:
TN60
Material:
Cermet
Coating Process:
Uncoated

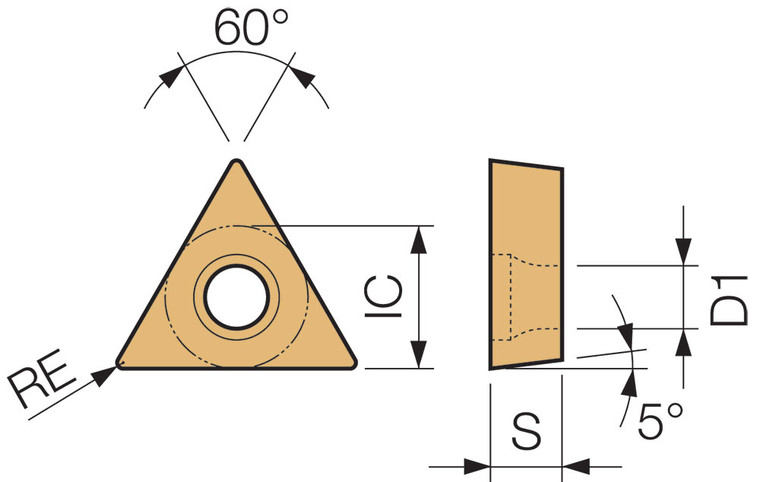

[IC] Inscribed Circle (mm):
3.97
[S] Thickness (mm):
1.59
[RE] Corner Radius (mm):
0.20
Application:
Back Boring|Boring|Copying|Internal Facing
Hand:
Left-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
60
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Insert Shape:
60 Degree Triangle
Number of Cutting Edges:
3
Usage Classification:
Continuous
Cutting Range:
Finishing
Insert Holding Method:
Screw or Clamp
Feature 1:
Insert for Boring, Internal Facing, Copying, Back Boring
Feature 2:
3 Cutting Edges
Feature 3:
General purpose cermet with superior wear resistance and toughness
Feature 4:
Application: Cutting of steel and stainless steel
ANSI Part Number:
TBGT12105LTN60
ISO Part Number:
TBGT060102L
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8807931
Compatible Toolholder (Partial):
...-STLBR1.2..., ...-STLBR06-..., ...-STUBR1.2, ...-STXBR06-..., ...-STZBL06-...
[IC] Inscribed Circle:
5/32"
[S] Thickness:
1/16"
[RE] Corner Radius:
0.008"
