TGF 32R033005 PR1215 Grade PVD Carbide, Indexable Grooving Insert

TGF 32R033005 PR1215 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKH15501
|
UPC:
4960664660643
$38.63
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
TGF 32R033005 PR1215 Grade PVD Carbide, 0.33mm Groove Width, Right-Hand Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
TGF
Insert Size:
32
Insert Grade:
PR1215
Material:
Carbide
Coating Process:
PVD

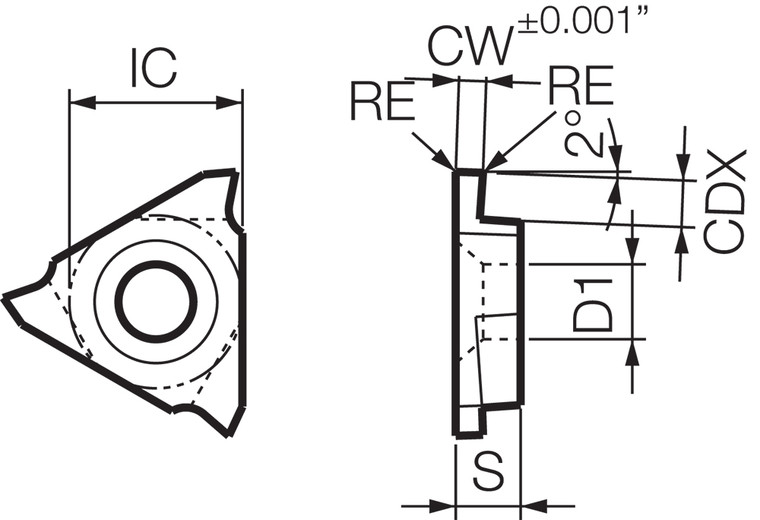

[IC] Inscribed Circle (mm):
9.525
[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.05
Application:
External Shallow Grooving
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
0.80
[CWN] Cutting Width Minimum (mm):
0.33
[CWX] Cutting Width Maximum (mm):
0.33
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
3
Usage Classification:
Continuous
Cutting Range:
Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Shallow Grooving
Feature 2:
General (Square), Corner is R Shape
Feature 3:
3 Cutting Edges
Feature 4:
Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
Feature 5:
Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting
ANSI Part Number:
TGF32R033005PR1215
ISO Part Number:
TGF32R033-005
US Stock:
70
Worldwide Stock:
0
Old Material Number:
8837302
Compatible Toolholder (Partial):
KTGFR...16F, KTGFR...16, S...KTGFL16
[IC] Inscribed Circle:
3/8"
[S] Thickness:
1/8"
[RE] Corner Radius:
0.002"
[CW] Cutting Width (Decimal Inch):
0.0130
[CW] Cutting Width (mm):
0.33
[CDX] Max Depth of Cut (Decimal Inch):
0.0315
[CWN] Cutting Width Minimum (Decimal Inch):
0.0130
[CWX] Cutting Width Maximum (Decimal Inch):
0.0130
