TGF 32R062N PR1215 Grade PVD Carbide, Indexable Grooving Insert
$38.63
(No reviews yet)
Write a Review
TGF 32R062N PR1215 Grade PVD Carbide, Indexable Grooving Insert
TGF 32R062N PR1215 Grade PVD Carbide, 0.0618" Groove Width, Right-Hand Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel
- Tool Style:
- TGF
- Insert Size:
- 32
- Chipbreaker:
- N
- Insert Grade:
- PR1215
- Material:
- Carbide
- Coating Process:
- PVD

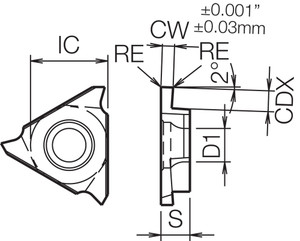

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.10
- Application:
- External Shallow Grooving
- Hand:
- Right-Hand
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 1.98
- [CWN] Cutting Width Minimum (mm):
- 1.57
- [CWX] Cutting Width Maximum (mm):
- 1.57
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Cutting Range:
- Medium
- Insert Holding Method:
- Clamp
- Unit (inch/mm):
- inch
- Feature 1:
- Insert for External Shallow Grooving
- Feature 2:
- General (Square), Corner is C Shape
- Feature 3:
- 3 Cutting Edges
- Feature 4:
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Feature 5:
- Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting
- ANSI Part Number:
- TGF32R062NPR1215
- ISO Part Number:
- TGF32R062N
- US Stock:
- 0
- Worldwide Stock:
- 0
- Old Material Number:
- 8837241
- Compatible Toolholder (Partial):
- KTGFR...16F, KTGFR...16, S...KTGFL16
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 0.004"
- [CW] Cutting Width (Decimal Inch):
- 0.0618
- [CW] Cutting Width (mm):
- 1.57
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.0780
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0618
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.0618
