TK R16 CR9025 Grade CVD Carbide, Indexable Cut-Off Insert

TK R16 CR9025 Grade CVD Carbide, Indexable Cut-Off Insert

SKU:
TKW15001
|
UPC:
4960664141425
$23.05
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
TK R16 CR9025 Grade CVD Carbide, 1.60mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (P) Steel
Additional Information
Tool Style:
TK
Insert Size:
16
Insert Grade:
CR9025
Material:
Carbide
Coating Process:
CVD

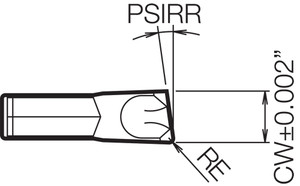

[RE] Corner Radius (mm):
0.15
Application:
Cut-Off
Hand:
Right-Hand
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
1.60
[CWX] Cutting Width Maximum (mm):
1.60
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off
Feature 2:
8 Degree Lead Angle
Feature 3:
1 Cutting Edge
Feature 4:
Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance
Feature 5:
Application: Cut-off, grooving and multi-function cutting of steel
ANSI Part Number:
TKR16CR9025
ISO Part Number:
TKR1.6
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8802969
Compatible Toolholder (Partial):
KTKB...-1SS
[RE] Corner Radius:
0.006"
[CW] Cutting Width (Decimal Inch):
0.0630
[CW] Cutting Width (mm):
1.60
[CWN] Cutting Width Minimum (Decimal Inch):
0.0630
[CWX] Cutting Width Maximum (Decimal Inch):
0.0630
