TK R3 KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

TK R3 KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

SKU:
TWE15151
|
UPC:
4960664144341
$20.44
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
TK R3 KW10 Grade Uncoated Carbide, 3.10mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals
Additional Information
Tool Style:
TK
Insert Size:
3
Insert Grade:
KW10
Material:
Carbide
Coating Process:
Uncoated

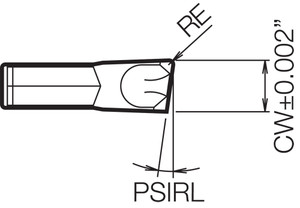

[RE] Corner Radius (mm):
0.25
Application:
Cut-Off
Hand:
Right-Hand
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
3.10
[CWX] Cutting Width Maximum (mm):
3.10
Primary Workpiece Material:
(N) Non-Ferrous Materials
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off
Feature 2:
8 Degree Lead Angle
Feature 3:
1 Cutting Edge
Feature 4:
ISO identification symbol K carbide (K10 relevant)
Feature 5:
Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
ANSI Part Number:
TKR3KW10
ISO Part Number:
TKR3
US Stock:
10
Worldwide Stock:
30
Old Material Number:
8802989
Compatible Toolholder (Partial):
KTKB...-3S
[RE] Corner Radius:
0.010"
[CW] Cutting Width (Decimal Inch):
0.1221
[CW] Cutting Width (mm):
3.10
[CWN] Cutting Width Minimum (Decimal Inch):
0.1221
[CWX] Cutting Width Maximum (Decimal Inch):
0.1221
