TK R4 PR1535 Grade PVD Carbide, Indexable Cut-Off Insert
$29.22
(No reviews yet)
Write a Review
TK R4 PR1535 Grade PVD Carbide, Indexable Cut-Off Insert
TK R4 PR1535 Grade PVD Carbide, 4.10mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy and (M) Stainless Steel
- Tool Style:
- TK
- Insert Size:
- 4
- Insert Grade:
- PR1535
- Material:
- Carbide
- Coating Process:
- PVD

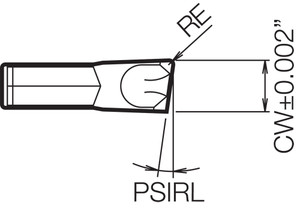

- [RE] Corner Radius (mm):
- 0.30
- Application:
- Cut-Off
- Hand:
- Right-Hand
- Rake:
- Positive
- [CWN] Cutting Width Minimum (mm):
- 4.10
- [CWX] Cutting Width Maximum (mm):
- 4.10
- Primary Workpiece Material:
- (S) Heat-Resistant Alloy
- Full Radius:
- No
- Number of Cutting Edges:
- 1
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium-Roughing
- Insert Holding Method:
- Self-Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for Cut-Off
- Feature 2:
- 8 Degree Lead Angle
- Feature 3:
- 1 Cutting Edge
- Feature 4:
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Feature 5:
- Application: PVD for titanium alloy and precipitation hardened stainless steel
- ANSI Part Number:
- TKR4PR1535
- ISO Part Number:
- TKR4
- US Stock:
- 0
- Worldwide Stock:
- 70
- Old Material Number:
- 8844601
- Compatible Toolholder (Partial):
- KTKB...-4S
- [RE] Corner Radius:
- 0.012"
- [CW] Cutting Width (Decimal Inch):
- 0.1614
- [CW] Cutting Width (mm):
- 4.10
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1614
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1614
