TK R4 TN90 Grade Uncoated Cermet, Indexable Cut-Off Insert

TK R4 TN90 Grade Uncoated Cermet, Indexable Cut-Off Insert

SKU:
TSO15201
|
UPC:
4960664141685
$19.47
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
TK R4 TN90 Grade Uncoated Cermet, 4.10mm Cutting Width, Right-Hand Cut-Off Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
TK
Insert Size:
4
Insert Grade:
TN90
Material:
Cermet
Coating Process:
Uncoated

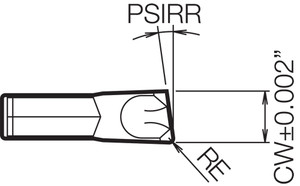

[RE] Corner Radius (mm):
0.30
Application:
Cut-Off
Hand:
Right-Hand
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
4.10
[CWX] Cutting Width Maximum (mm):
4.10
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off
Feature 2:
8 Degree Lead Angle
Feature 3:
1 Cutting Edge
Feature 4:
Cermet with great surface finish eliminates many secondary operations
Feature 5:
Application: For grooving and cut-off of steel
ANSI Part Number:
TKR4TN90
ISO Part Number:
TKR4
US Stock:
0
Worldwide Stock:
140
Old Material Number:
8802996
Compatible Toolholder (Partial):
KTKB...-4S
[RE] Corner Radius:
0.012"
[CW] Cutting Width (Decimal Inch):
0.1614
[CW] Cutting Width (mm):
4.10
[CWN] Cutting Width Minimum (Decimal Inch):
0.1614
[CWX] Cutting Width Maximum (Decimal Inch):
0.1614
