TKF 12L070S PR1725 Grade PVD Carbide, Indexable Cut-Off Insert

TKF 12L070S PR1725 Grade PVD Carbide, Indexable Cut-Off Insert

SKU:
TLM40077
|
UPC:
4960664920631
$51.54
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
TKF 12L070S PR1725 Grade PVD Carbide, 0.0276" Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
TKF
Insert Size:
12
Chipbreaker:
S
Insert Grade:
PR1725
Material:
Carbide
Coating Process:
PVD

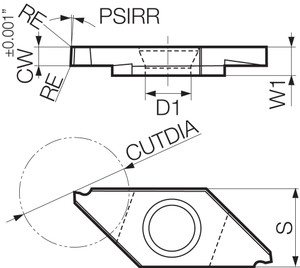

[S] Thickness (mm):
8.70
[RE] Corner Radius (mm):
0.03
Application:
Cut-Off|Small Parts Machining
Hand:
Left-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
4.00
[CWN] Cutting Width Minimum (mm):
0.70
[CWX] Cutting Width Maximum (mm):
0.70
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off for Small Parts Machining
Feature 2:
MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high-quality surface finish in steel and stainless applications
ANSI Part Number:
TKF12L070SPR1725
ISO Part Number:
TKF12L070-S
US Stock:
10
Worldwide Stock:
10
Old Material Number:
8865445
Compatible Toolholder (Partial):
KTKFL...-12JX, KTKFL...JX-12, KTKFL...F-12
[S] Thickness:
0.343"
[RE] Corner Radius:
0.001"
[CW] Cutting Width (Decimal Inch):
0.0276
[CW] Cutting Width (mm):
0.70
[CDX] Max Depth of Cut (Decimal Inch):
0.1575
[CWN] Cutting Width Minimum (Decimal Inch):
0.0276
[CWX] Cutting Width Maximum (Decimal Inch):
0.0276
