TKF 12L100S PDL025 Grade DLC Carbide, Indexable Cut-Off Insert
$55.30
(No reviews yet)
Write a Review
TKF 12L100S PDL025 Grade DLC Carbide, Indexable Cut-Off Insert
TKF 12L100S PDL025 Grade DLC Carbide, 1.00mm Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals
- Tool Style:
- TKF
- Insert Size:
- 12
- Chipbreaker:
- S
- Insert Grade:
- PDL025
- Material:
- Carbide
- Coating Process:
- DLC

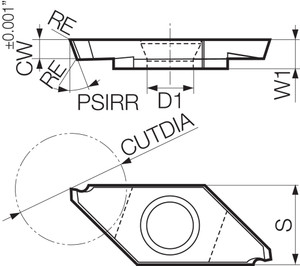

- [S] Thickness (mm):
- 8.70
- [RE] Corner Radius (mm):
- 0.03
- Application:
- Cut-Off|Small Parts Machining
- Hand:
- Left-Hand
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 6.00
- [CWN] Cutting Width Minimum (mm):
- 1.00
- [CWX] Cutting Width Maximum (mm):
- 1.00
- Primary Workpiece Material:
- (N) Non-Ferrous Materials
- Full Radius:
- No
- Number of Cutting Edges:
- 2
- Usage Classification:
- Light Interruption
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for Cut-Off for Small Parts Machining
- Feature 2:
- 2 Cutting Edges
- Feature 3:
- High Hardness with Kyocera’s Proprietary Hydrogen-free DLC Coating
- Feature 4:
- Application: Excellent machining stability in interrupted aluminum machining
- ANSI Part Number:
- TKF12L100SPDL025
- ISO Part Number:
- TKF12L100-S
- Old Material Number:
- 8845308
- Compatible Toolholder (Partial):
- KTKFL...-12JX, KTKFL...JX-12, KTKFL...F-12
- [S] Thickness:
- 0.343"
- [RE] Corner Radius:
- 0.001"
- [CW] Cutting Width (Decimal Inch):
- 0.0394
- [CW] Cutting Width (mm):
- 1.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.2362
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0394
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.0394
- Series Description (PeopleSoft):
- KTKF-Series
- Series Description:
- KTKF-Series
