TKF 12R050NB KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

TKF 12R050NB KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

SKU:
TWE16100
|
UPC:
4960664427260
$42.55
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
TKF 12R050NB KW10 Grade Uncoated Carbide, 0.50mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals
Additional Information
Tool Style:
TKF
Insert Size:
12
Chipbreaker:
NB
Insert Grade:
KW10
Material:
Carbide
Coating Process:
Uncoated

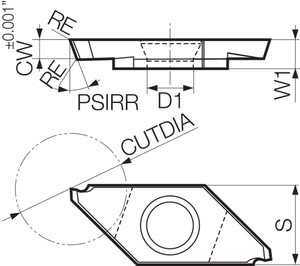

[S] Thickness (mm):
8.70
[RE] Corner Radius (mm):
0.00
Application:
Cut-Off|Small Parts Machining
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.50
[CWN] Cutting Width Minimum (mm):
0.50
[CWX] Cutting Width Maximum (mm):
0.50
Primary Workpiece Material:
(N) Non-Ferrous Materials
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off for Small Parts Machining
Feature 2:
Without Chipbreaker
Feature 3:
2 Cutting Edges
Feature 4:
ISO identification symbol K carbide (K10 relevant)
Feature 5:
Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
ANSI Part Number:
TKF12R050NBKW10
ISO Part Number:
TKF12R050-NB
US Stock:
60
Worldwide Stock:
60
Old Material Number:
8819993
Compatible Toolholder (Partial):
KTKFR...-12JX, KTKFR...JX-12, KTKFR...F-12
[S] Thickness:
0.343"
[RE] Corner Radius:
0.000"
[CW] Cutting Width (Decimal Inch):
0.0197
[CW] Cutting Width (mm):
0.50
[CDX] Max Depth of Cut (Decimal Inch):
0.0984
[CWN] Cutting Width Minimum (Decimal Inch):
0.0197
[CWX] Cutting Width Maximum (Decimal Inch):
0.0197
