TKF 12R125S PR1535 Grade PVD Carbide, Indexable Cut-Off Insert

TKF 12R125S PR1535 Grade PVD Carbide, Indexable Cut-Off Insert

SKU:
TLC16010
|
UPC:
4960664750153
$51.54
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
TKF 12R125S PR1535 Grade PVD Carbide, 1.25mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy and (M) Stainless Steel
Additional Information
Tool Style:
TKF
Insert Size:
12
Chipbreaker:
S
Insert Grade:
PR1535
Material:
Carbide
Coating Process:
PVD

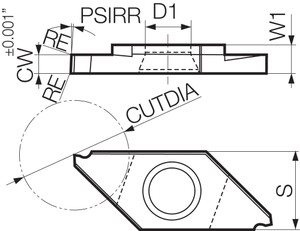

[S] Thickness (mm):
8.70
[RE] Corner Radius (mm):
0.03
Application:
Cut-Off|Small Parts Machining
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
6.00
[CWN] Cutting Width Minimum (mm):
1.25
[CWX] Cutting Width Maximum (mm):
1.25
Primary Workpiece Material:
(S) Heat-Resistant Alloy
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Medium-Roughing
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off for Small Parts Machining
Feature 2:
2 Cutting Edges
Feature 3:
Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Feature 4:
Application: PVD for titanium alloy and precipitation hardened stainless steel
ANSI Part Number:
TKF12R125SPR1535
ISO Part Number:
TKF12R125-S
US Stock:
10
Worldwide Stock:
0
Old Material Number:
8844670
Compatible Toolholder (Partial):
KTKFR...-12JX, KTKFR...JX-12, KTKFR...F-12
[S] Thickness:
0.343"
[RE] Corner Radius:
0.001"
[CW] Cutting Width (Decimal Inch):
0.0492
[CW] Cutting Width (mm):
1.25
[CDX] Max Depth of Cut (Decimal Inch):
0.2362
[CWN] Cutting Width Minimum (Decimal Inch):
0.0492
[CWX] Cutting Width Maximum (Decimal Inch):
0.0492
