TKFT 12LB6000 PR1535 Grade PVD Carbide, Indexable Threading Insert

TKFT 12LB6000 PR1535 Grade PVD Carbide, Indexable Threading Insert

SKU:
TLC16565
$50.55
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
TKFT 12LB6000 PR1535 Grade PVD Carbide, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads
Additional Information
Tool Style:
TKFT
Insert Size:
12
Insert Grade:
PR1535
Material:
Carbide
Coating Process:
PVD

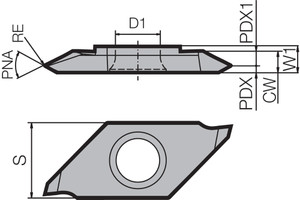

[S] Thickness (mm):
8.70
[RE] Corner Radius (mm):
0.05
Application:
External Threading
Hand:
Left-Hand
[CWN] Cutting Width Minimum (mm):
2.50
[CWX] Cutting Width Maximum (mm):
2.50
Thread Type:
External
Thread Profile:
60 Degree Partial Profile
Thread Pitch (TPI):
UN: 64-48
Thread Pitch (mm):
M: 0.20-0.60
Primary Workpiece Material:
(M) Stainless Steel
Number of Cutting Edges:
2
Usage Classification:
Continuous
Insert Holding Method:
Screw
Unit (inch/mm):
inch/mm
Feature 1:
Insert for External Threading with 2 Cutting Edges
Feature 2:
60 Degree Partial Profile for Metric (M), Unified (UN) threads
Feature 3:
Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Feature 4:
Application: PVD for titanium alloy and precipitation hardened stainless steel
ANSI Part Number:
TKFT12LB6000PR1535
ISO Part Number:
TKFT12LB6000
Old Material Number:
8844735
Compatible Toolholder (Partial):
KTKFL…-12…
[S] Thickness:
0.343"
[RE] Corner Radius:
0.002"
[CW] Cutting Width (Decimal Inch):
0.0984
[CW] Cutting Width (mm):
2.50
[CWN] Cutting Width Minimum (Decimal Inch):
0.0984
[CWX] Cutting Width Maximum (Decimal Inch):
0.0984
