TKN 16 TN90 Grade Uncoated Cermet, Indexable Cut-Off Insert
$17.63
(No reviews yet)
Write a Review
TKN 16 TN90 Grade Uncoated Cermet, Indexable Cut-Off Insert
TKN 16 TN90 Grade Uncoated Cermet, 1.60mm Cutting Width, Neutral Cut-Off Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel
- Tool Style:
- TKN
- Insert Size:
- 16
- Insert Grade:
- TN90
- Material:
- Cermet
- Coating Process:
- Uncoated

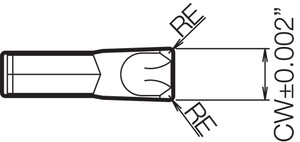

- [RE] Corner Radius (mm):
- 0.15
- Application:
- Cut-Off
- Hand:
- Neutral
- Rake:
- Positive
- [CWN] Cutting Width Minimum (mm):
- 1.60
- [CWX] Cutting Width Maximum (mm):
- 1.60
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 1
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Self-Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for Cut-Off
- Feature 2:
- 1 Cutting Edge
- Feature 3:
- Cermet with great surface finish eliminates many secondary operations
- Feature 4:
- Application: For grooving and cut-off of steel
- ANSI Part Number:
- TKN16TN90
- ISO Part Number:
- TKN1.6
- US Stock:
- 0
- Worldwide Stock:
- 10
- Old Material Number:
- 8802943
- Compatible Toolholder (Partial):
- KTKB...-1SS
- [RE] Corner Radius:
- 0.006"
- [CW] Cutting Width (Decimal Inch):
- 0.0630
- [CW] Cutting Width (mm):
- 1.60
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0630
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.0630
