TKN 24 KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

TKN 24 KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

SKU:
TWE15100
|
UPC:
4960664144303
$20.44
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
TKN 24 KW10 Grade Uncoated Carbide, 2.40mm Cutting Width, Neutral Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals
Additional Information
Tool Style:
TKN
Insert Size:
24
Insert Grade:
KW10
Material:
Carbide
Coating Process:
Uncoated
[RE] Corner Radius (mm):
0.20
Application:
Cut-Off
Hand:
Neutral
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
2.40
[CWX] Cutting Width Maximum (mm):
2.40
Primary Workpiece Material:
(N) Non-Ferrous Materials
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off
Feature 2:
1 Cutting Edge
Feature 3:
ISO identification symbol K carbide (K10 relevant)
Feature 4:
Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
ANSI Part Number:
TKN24KW10
ISO Part Number:
TKN2.4
US Stock:
0
Worldwide Stock:
100
Old Material Number:
8802945
Compatible Toolholder (Partial):
KTKB...-2S

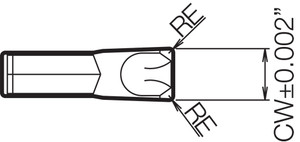

[RE] Corner Radius:
0.008"
[CW] Cutting Width (Decimal Inch):
0.0945
[CW] Cutting Width (mm):
2.40
[CWN] Cutting Width Minimum (Decimal Inch):
0.0945
[CWX] Cutting Width Maximum (Decimal Inch):
0.0945
