TKN 5 PR930 Grade PVD Carbide, Indexable Cut-Off Insert

TKN 5 PR930 Grade PVD Carbide, Indexable Cut-Off Insert

SKU:
TKT15300
|
UPC:
4960664180691
$25.69
(No reviews yet)
Width:
1.77 (in)
Height:
0.59 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
TKN 5 PR930 Grade PVD Carbide, 5.10mm Cutting Width, Neutral Cut-Off Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
TKN
Insert Size:
5
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

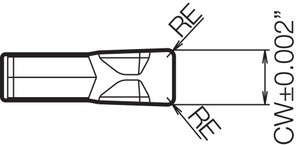

[RE] Corner Radius (mm):
0.30
Application:
Cut-Off
Hand:
Neutral
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
5.10
[CWX] Cutting Width Maximum (mm):
5.10
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off
Feature 2:
1 Cutting Edge
Feature 3:
Hard TiCN base PVD coated super micro-grain carbide
Feature 4:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
TKN5PR930
ISO Part Number:
TKN5
US Stock:
0
Worldwide Stock:
500
Old Material Number:
8814293
Compatible Toolholder (Partial):
KTKB...-5S
[RE] Corner Radius:
0.012"
[CW] Cutting Width (Decimal Inch):
0.2008
[CW] Cutting Width (mm):
5.10
[CWN] Cutting Width Minimum (Decimal Inch):
0.2008
[CWX] Cutting Width Maximum (Decimal Inch):
0.2008
