TNG 333T00825 KS6050 Grade Ceramic, Indexable Turning Insert
$27.79
(No reviews yet)
Write a Review
TNG 333T00825 KS6050 Grade Ceramic, Indexable Turning Insert
TNG 333T00825 KS6050 Grade Ceramic, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (K) Gray Cast Iron
- Tool Style:
- TNG
- Insert Size:
- 333
- Insert Grade:
- KS6050
- Material:
- Ceramic
- Coating Process:
- Uncoated

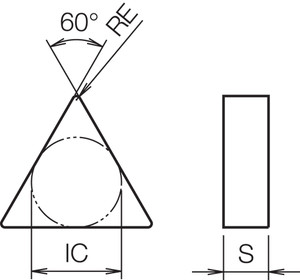

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 1.20
- Application:
- Copying|External Turning|Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 60
- Primary Workpiece Material:
- (K) Gray Cast Iron
- Insert Shape:
- 60 Degree Triangle
- Number of Cutting Edges:
- 6
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium-Roughing
- Insert Holding Method:
- Clamp
- Feature 1:
- Insert for External Turning, Facing, Copying
- Feature 2:
- 6 Cutting Edges
- Feature 3:
- Silicon nitride ceramic (Si3N4)
- Feature 4:
- Application: Roughing and interrupted machining of cast iron
- Feature 5:
- Great for stability (with or without coolant)
- ANSI Part Number:
- TNG333T00825KS6050
- ISO Part Number:
- TNGN160412T02025
- US Stock:
- 0
- Worldwide Stock:
- 150
- Old Material Number:
- 8841763
- Compatible Toolholder (Partial):
- CTJNR…-3D, CTJNL…-3D, CTJNR…-16, CTJNL…-16, CTUNR…-16, CTUNL…-16
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 3/64"
