TNGA 332T00220 KA30 Grade Ceramic, Indexable Turning Insert
$9.18
(No reviews yet)
Write a Review
TNGA 332T00220 KA30 Grade Ceramic, Indexable Turning Insert
TNGA 332T00220 KA30 Grade Ceramic, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing in (K) Gray Cast Iron
- Tool Style:
- TNGA
- Insert Size:
- 332
- Insert Grade:
- KA30
- Material:
- Ceramic
- Coating Process:
- Uncoated

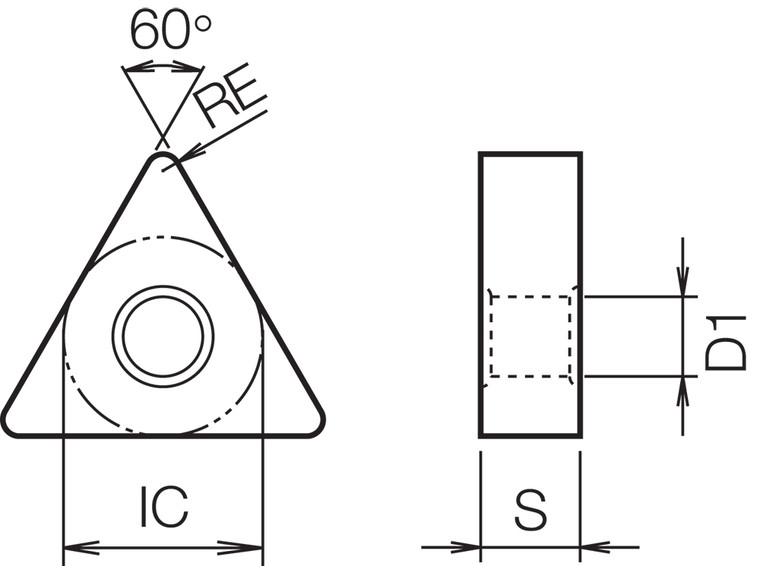

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.80
- Application:
- Boring|Chamfering|Copying|External Turning|Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 60
- Primary Workpiece Material:
- (K) Gray Cast Iron
- Insert Shape:
- 60 Degree Triangle
- Number of Cutting Edges:
- 6
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Facing, Copying, Chamfering, Boring
- Feature 2:
- 6 Cutting Edges
- Feature 3:
- Aluminum Oxide ceramic (Al2O3)
- Feature 4:
- Application: Finishing of cast iron at high cutting speeds without coolant
- ANSI Part Number:
- TNGA332T00220KA30
- ISO Part Number:
- TNGA160408T00520
- Old Material Number:
- 8814374
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/32"
