11IR 55005 TC60 Grade Uncoated Cermet, Indexable Threading Insert

11IR 55005 TC60 Grade Uncoated Cermet, Indexable Threading Insert

SKU:
TSB01180
$31.58
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
11IR 55005 TC60 Grade Uncoated Cermet, Internal, 55 Degree Partial Profile, Right-Hand Threading Insert for Parallel Pipe [G(PF)], Tapered Pipe [Rc(PT), (BSPT)], Whitworth (W) Threads
Additional Information
Tool Style:
11IR
Insert Size:
11
Insert Grade:
TC60
Material:
Cermet
Coating Process:
Uncoated

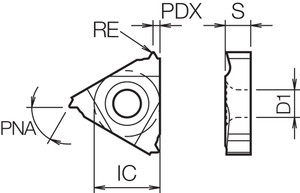

[IC] Inscribed Circle (mm):
6.35
[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.05
Application:
Internal Threading
Hand:
Right-Hand
Thread Type:
Internal
Thread Profile:
55 Degree Partial Profile
Thread Pitch (TPI):
G(PF), Rc(PT), (BSPT): 28-14, W: 24-14
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Number of Cutting Edges:
3
Usage Classification:
Continuous
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
inch
Feature 1:
Insert for Internal Threading with 3 Cutting Edges
Feature 2:
55 Degree Partial Profile for Parallel Pipe [G(PF)], Tapered Pipe [Rc(PT), (BSPT)], Whitworth (W) threads
Feature 3:
Excellent surface finish cermet grade for stable machining
Feature 4:
Application: For milling, grooving, and threading of steel and stainless steel
ANSI Part Number:
11IR55005TC60
ISO Part Number:
11IR55005
Old Material Number:
8814840
Compatible Toolholder (Partial):
S…SINR-2, SINR…-11E, SINR…-11
[IC] Inscribed Circle:
1/4"
[S] Thickness:
1/8"
[RE] Corner Radius:
0.002"
