22ER 500TR TC60 Grade Uncoated Cermet, Indexable Threading Insert
$49.89
(No reviews yet)
Write a Review
22ER 500TR TC60 Grade Uncoated Cermet, Indexable Threading Insert
22ER 500TR TC60 Grade Uncoated Cermet, External, 30 Degree Partial Profile, Right-Hand Threading Insert for Trapezoidal (Tr) Threads
- Tool Style:
- 22ER
- Insert Size:
- 22
- Insert Grade:
- TC60
- Material:
- Cermet
- Coating Process:
- Uncoated

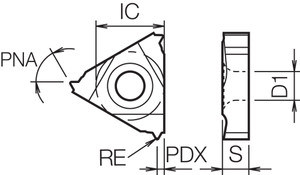

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.90
- [RE] Corner Radius (mm):
- 0.20
- Application:
- External Threading
- Hand:
- Right-Hand
- Thread Type:
- External
- Thread Profile:
- 30 Degree Partial Profile
- Thread Pitch (mm):
- Tr: 5.0
- Primary Workpiece Material:
- (P) Steel|(M) Stainless Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw or Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for External Threading with 3 Cutting Edges
- Feature 2:
- 30 Degree Partial Profile for Trapezoidal (Tr) threads
- Feature 3:
- Excellent surface finish cermet grade for stable machining
- Feature 4:
- Application: For milling, grooving, and threading of steel and stainless steel
- ANSI Part Number:
- 22ER500TRTC60
- ISO Part Number:
- 22ER500TR
- Old Material Number:
- 8815017
- Compatible Toolholder (Partial):
- KTNR…-22
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 0.193"
- [RE] Corner Radius:
- 0.008"
