22IR 08UN TC60 Grade Uncoated Cermet, Indexable Threading Insert
$47.89
(No reviews yet)
Write a Review
22IR 08UN TC60 Grade Uncoated Cermet, Indexable Threading Insert
22IR 08UN TC60 Grade Uncoated Cermet, External & Internal, 60 Degree Full Profile, Right-Hand Threading Insert for Unified (UN) Threads
- Tool Style:
- 22IR
- Insert Size:
- 22
- Insert Grade:
- TC60
- Material:
- Cermet
- Coating Process:
- Uncoated

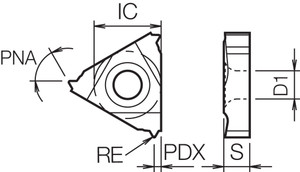

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.90
- [RE] Corner Radius (mm):
- 0.14
- Application:
- Internal Threading
- Hand:
- Right-Hand
- Thread Type:
- External & Internal
- Thread Profile:
- 60 Degree Full Profile
- Thread Pitch (TPI):
- UN, UNF: 9
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw or Clamp
- Unit (inch/mm):
- inch
- Feature 1:
- Insert for Internal Threading with 3 Cutting Edges
- Feature 2:
- 60 Degree Full Profile for Unified (UN) threads
- Feature 3:
- Excellent surface finish cermet grade for stable machining
- Feature 4:
- Application: For milling, grooving, and threading of steel and stainless steel
- ANSI Part Number:
- 22IR08UNTC60M
- ISO Part Number:
- 22IR08UN
- US Stock:
- 10
- Worldwide Stock:
- 20
- Old Material Number:
- 8803451
- Compatible Toolholder (Partial):
- SINR…-22, CINR…-22
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 0.193"
- [RE] Corner Radius:
- 0.006"
