TPGB 222S00435MET KBN010 Grade CBN, Indexable Turning Insert

TPGB 222S00435MET KBN010 Grade CBN, Indexable Turning Insert

SKU:
TFD00106
$98.38
(No reviews yet)
Width:
1.69 (in)
Height:
0.43 (in)
Depth:
2.36 (in)
Current Stock:
Adding to cart… The item has been added
Description
TPGB 222S00435MET KBN010 Grade CBN, 60 Degree Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous Machining of (H) Hardened Materials
Additional Information
Tool Style:
TPGB
Insert Size:
222
Insert Grade:
KBN010
Material:
CBN
Coating Process:
PVD

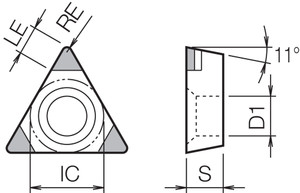

[IC] Inscribed Circle:
1/4"
[IC] Inscribed Circle (mm):
6.35
[S] Thickness:
1/8"
[S] Thickness (mm):
3.18
[RE] Corner Radius:
1/32"
[RE] Corner Radius (mm):
0.80
[LE] CBN/PCD Tip Length (Decimal Inch):
0.0709
[LE] CBN/PCD Tip Length (mm):
1.80
Application:
Back Boring|Boring|Copying|External Turning|Internal Facing
Hand:
Neutral
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
60
Primary Workpiece Material:
(H) Hardened Materials
Insert Shape:
60 Degree Triangle
Number of Cutting Edges:
3
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw or Clamp
ANSI Part Number:
TPGB222S00435METKBN010
ISO Part Number:
TPGB110308S01035MET
Compatible Toolholder (Partial):
STGPR..-11, STGPL..-11, ...-STLPR2..., ...-STLPL2..., ...-STLPR11-..., ...-STLPL11-..., ...-STUPR2, ...-STUPL2, ...-STWPR11-…, ...-STWPL11-…
