TPGH 2205R TN60 Grade Uncoated Cermet, Indexable Turning Insert

TPGH 2205R TN60 Grade Uncoated Cermet, Indexable Turning Insert

SKU:
TSJ02480
|
UPC:
4960664056224
$13.71
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
TPGH 2205R TN60 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Right-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel
Additional Information
Tool Style:
TPGH
Insert Size:
2205
Insert Grade:
TN60
Material:
Cermet
Coating Process:
Uncoated

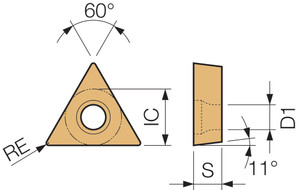

[IC] Inscribed Circle (mm):
6.35
[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.20
Application:
Back Boring|Boring|Copying|External Turning|Internal Facing
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
60
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Insert Shape:
60 Degree Triangle
Number of Cutting Edges:
3
Usage Classification:
Continuous
Cutting Range:
Finishing
Insert Holding Method:
Screw or Clamp
Feature 1:
Insert for External Turning, Boring, Internal Facing, Copying, Back Boring
Feature 2:
3 Cutting Edges
Feature 3:
General purpose cermet with superior wear resistance and toughness
Feature 4:
Application: Cutting of steel and stainless steel
ANSI Part Number:
TPGH2205RTN60
ISO Part Number:
TPGH110302R
US Stock:
0
Worldwide Stock:
40
Old Material Number:
8808145
Compatible Toolholder (Partial):
STGPR..-11, ...-STLPL2..., ...-STLPL11-..., ...-STUPL2, ...-STWPL11-…
[IC] Inscribed Circle:
1/4"
[S] Thickness:
1/8"
[RE] Corner Radius:
0.008"
