TPGH 322L TN610 Grade Uncoated Cermet, Indexable Turning Insert
$18.90
(No reviews yet)
Write a Review
TPGH 322L TN610 Grade Uncoated Cermet, Indexable Turning Insert

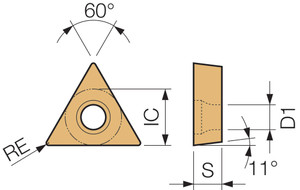

TPGH 322L TN610 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel
- Tool Style:
- TPGH
- Insert Size:
- 322
- Insert Grade:
- TN610
- Material:
- Cermet
- Coating Process:
- Uncoated
- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.80
- Application:
- Back Boring|Boring|Copying|External Turning|Internal Facing
- Hand:
- Left-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 60
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Insert Shape:
- 60 Degree Triangle
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Boring, Internal Facing, Copying, Back Boring
- Feature 2:
- 3 Cutting Edges
- Feature 3:
- Three hybrid technology attributes maintain superior surface finish and machining stability
- Feature 4:
- Application: Stable machining of steel
- ANSI Part Number:
- TPGH322LTN610
- ISO Part Number:
- TPGH160308L
- US Stock:
- 0
- Worldwide Stock:
- 0
- Old Material Number:
- 8848049
- Compatible Toolholder (Partial):
- ...-STLPR16-..., ...-STWPR16-...
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 1/32"
