TT 32R6002 PR1115 Grade PVD Carbide, Indexable Threading Insert
$48.43
(No reviews yet)
Write a Review
TT 32R6002 PR1115 Grade PVD Carbide, Indexable Threading Insert
TT 32R6002 PR1115 Grade PVD Carbide, External & Internal, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads
- Tool Style:
- TT
- Insert Size:
- 32
- Insert Grade:
- PR1115
- Material:
- Carbide
- Coating Process:
- PVD

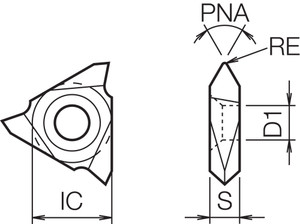

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.20
- Application:
- External Threading|Internal Threading
- Hand:
- Right-Hand
- Thread Type:
- External & Internal
- Thread Profile:
- 60 Degree Partial Profile
- Thread Pitch (TPI):
- UN: 16-10
- Thread Pitch (mm):
- M: 1.5-2.5
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel|(M) Stainless Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch/mm
- Feature 1:
- Insert for External & Internal Threading with 3 Cutting Edges
- Feature 2:
- 60 Degree Partial Profile for Metric (M), Unified (UN) threads
- Feature 3:
- Hard TiAlN base PVD coated super micro-grain carbide
- Feature 4:
- Application: Superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel
- ANSI Part Number:
- TT32R6002PR1115
- ISO Part Number:
- TT32R6002
- US Stock:
- 5
- Worldwide Stock:
- 0
- Old Material Number:
- 8829869
- Compatible Toolholder (Partial):
- KTTR…-16, KITGL…-16
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 0.008"
