TT 43L5504 TC60 Grade Uncoated Cermet, Indexable Threading Insert
$39.19
(No reviews yet)
Write a Review
TT 43L5504 TC60 Grade Uncoated Cermet, Indexable Threading Insert
TT 43L5504 TC60 Grade Uncoated Cermet, External & Internal, 55 Degree Partial Profile, Left-Hand Threading Insert for Whitworth (W) Threads
- Tool Style:
- TT
- Insert Size:
- 43
- Insert Grade:
- TC60
- Material:
- Cermet
- Coating Process:
- Uncoated

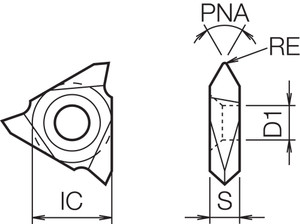

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.41
- Application:
- External Threading|Internal Threading
- Hand:
- Left-Hand
- Thread Type:
- External & Internal
- Thread Profile:
- 55 Degree Partial Profile
- Thread Pitch (TPI):
- W: 8-7, W: 8
- Primary Workpiece Material:
- (P) Steel|(M) Stainless Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Insert for External & Internal Threading with 3 Cutting Edges
- Feature 2:
- 55 Degree Partial Profile for Whitworth (W) threads
- Feature 3:
- Excellent surface finish cermet grade for stable machining
- Feature 4:
- Application: For milling, grooving, and threading of steel and stainless steel
- ANSI Part Number:
- TT43L5504TC60
- ISO Part Number:
- TT43L5504
- Old Material Number:
- 8815712
- Compatible Toolholder (Partial):
- KTTL…-22, KITGR…-22
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 0.016"
