TT 43R5502 PR1115 Grade PVD Carbide, Indexable Threading Insert
$56.48
(No reviews yet)
Write a Review
TT 43R5502 PR1115 Grade PVD Carbide, Indexable Threading Insert
TT 43R5502 PR1115 Grade PVD Carbide, External & Internal, 55 Degree Partial Profile, Right-Hand Threading Insert for Parallel Pipe [G(PF)], Tapered Pipe [R(PT), (BSPT)], Whitworth (W) Threads
- Tool Style:
- TT
- Insert Size:
- 43
- Insert Grade:
- PR1115
- Material:
- Carbide
- Coating Process:
- PVD

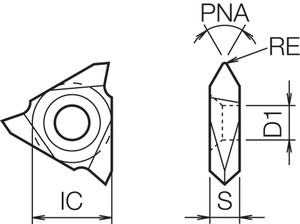

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.20
- Application:
- External Threading|Internal Threading
- Hand:
- Right-Hand
- Thread Type:
- External & Internal
- Thread Profile:
- 55 Degree Partial Profile
- Thread Pitch (TPI):
- G(PF), R(PT), (BSPT): 14-11, W: 16-7, W: 16-8
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel|(M) Stainless Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Insert for External & Internal Threading with 3 Cutting Edges
- Feature 2:
- 55 Degree Partial Profile for Parallel Pipe [G(PF)], Tapered Pipe [R(PT), (BSPT)], Whitworth (W) threads
- Feature 3:
- Hard TiAlN base PVD coated super micro-grain carbide
- Feature 4:
- Application: Superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel
- ANSI Part Number:
- TT43R5502PR1115
- ISO Part Number:
- TT43R5502
- Old Material Number:
- 8829879
- Compatible Toolholder (Partial):
- KTTR…-22, KITGL…-22
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 0.008"
