TT 43R6001 KW10 Grade Uncoated Carbide, Indexable Threading Insert
$50.01
(No reviews yet)
Write a Review
TT 43R6001 KW10 Grade Uncoated Carbide, Indexable Threading Insert
TT 43R6001 KW10 Grade Uncoated Carbide, External & Internal, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads
- Tool Style:
- TT
- Insert Size:
- 43
- Insert Grade:
- KW10
- Material:
- Carbide
- Coating Process:
- Uncoated

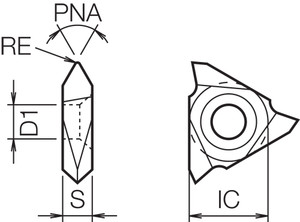

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.10
- Application:
- External Threading|Internal Threading
- Hand:
- Right-Hand
- Thread Type:
- External & Internal
- Thread Profile:
- 60 Degree Partial Profile
- Thread Pitch (TPI):
- UN: 24-8, UN: 16-10
- Thread Pitch (mm):
- M: 1.0-3.5, M: 1.5-3.0
- Primary Workpiece Material:
- (K) Cast Iron|(N) Non-Ferrous Materials
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch/mm
- Feature 1:
- Insert for External & Internal Threading with 3 Cutting Edges
- Feature 2:
- 60 Degree Partial Profile for Metric (M), Unified (UN) threads
- Feature 3:
- ISO identification symbol K carbide (K10 relevant)
- Feature 4:
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
- ANSI Part Number:
- TT43R6001KW10
- ISO Part Number:
- TT43R6001
- Old Material Number:
- 8805898
- Compatible Toolholder (Partial):
- KTTR…-22, KITGL…-22
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 0.004"
