TTX 32R5501 TC60 Grade Uncoated Cermet, Indexable Threading Insert
$33.82
(No reviews yet)
Write a Review
TTX 32R5501 TC60 Grade Uncoated Cermet, Indexable Threading Insert
TTX 32R5501 TC60 Grade Uncoated Cermet, External, 55 Degree Partial Profile, Right-Hand Threading Insert for Parallel Pipe [G(PF)], Tapered Pipe [R(PT), (BSPT)], Whitworth (W) Threads
- Tool Style:
- TTX
- Insert Size:
- 32
- Insert Grade:
- TC60
- Material:
- Cermet
- Coating Process:
- Uncoated

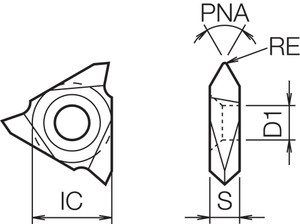

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.10
- Application:
- External Threading
- Hand:
- Right-Hand
- Thread Type:
- External
- Thread Profile:
- 55 Degree Partial Profile
- Thread Pitch (TPI):
- G(PF), R(PT), (BSPT): 28-19, W: 24-20
- Primary Workpiece Material:
- (P) Steel|(M) Stainless Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Insert for External Threading with 3 Cutting Edges
- Feature 2:
- 55 Degree Partial Profile for Parallel Pipe [G(PF)], Tapered Pipe [R(PT), (BSPT)], Whitworth (W) threads
- Feature 3:
- Excellent surface finish cermet grade for stable machining
- Feature 4:
- Application: For milling, grooving, and threading of steel and stainless steel
- ANSI Part Number:
- TTX32R5501TC60
- ISO Part Number:
- TTX32R5501
- Old Material Number:
- 8815751
- Compatible Toolholder (Partial):
- KKTXR…-3, KTTXR…-16, S…KTTXL16
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 0.004"
