TTX 32R6001 TC60 Grade Uncoated Cermet, Indexable Threading Insert
$33.82
(No reviews yet)
Write a Review
TTX 32R6001 TC60 Grade Uncoated Cermet, Indexable Threading Insert
TTX 32R6001 TC60 Grade Uncoated Cermet, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads
- Tool Style:
- TTX
- Insert Size:
- 32
- Insert Grade:
- TC60
- Material:
- Cermet
- Coating Process:
- Uncoated

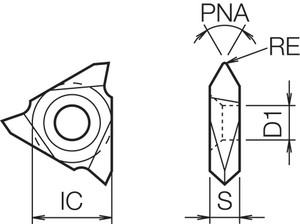

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.10
- Application:
- External Threading
- Hand:
- Right-Hand
- Thread Type:
- External
- Thread Profile:
- 60 Degree Partial Profile
- Thread Pitch (TPI):
- UN: 28-14
- Thread Pitch (mm):
- M: 1.0-2.0
- Primary Workpiece Material:
- (P) Steel|(M) Stainless Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch/mm
- Feature 1:
- Insert for External Threading with 3 Cutting Edges
- Feature 2:
- 60 Degree Partial Profile for Metric (M), Unified (UN) threads
- Feature 3:
- Excellent surface finish cermet grade for stable machining
- Feature 4:
- Application: For milling, grooving, and threading of steel and stainless steel
- ANSI Part Number:
- TTX32R6001TC60
- ISO Part Number:
- TTX32R6001
- Old Material Number:
- 8807741
- Compatible Toolholder (Partial):
- KKTXR…-3, KTTXR…-16, S…KTTXL16
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 0.004"
