TWFGTR 180 PR1025 Grade PVD Carbide, Micro Face Grooving Bar

TWFGTR 180 PR1025 Grade PVD Carbide, Micro Face Grooving Bar

SKU:
TJW17320
|
UPC:
4960664475438
$72.18
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description

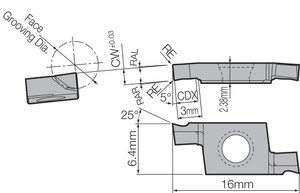

TWFGTR 180 PR1025 Grade PVD Carbide, Right-Hand, Micro Face Grooving Bar with a 6.00mm Minimum Face Groove Diameter for Micro Diameter Face Grooving in (P) Steel, (M) Stainless Steel
Additional Information
Tool Style:
TWFGT
Insert Grade:
PR1025
Material:
Carbide
Coating Process:
PVD
[S] Thickness (mm):
2.38
[RE] Corner Radius (mm):
0.05
Grooving Type:
Face Grooving
[INSL] Insert Length (mm):
16.00
Application:
Micro Face Grooving
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
95
[CDX] Max Depth of Cut (mm):
3.00
[CWN] Cutting Width Minimum (mm):
1.80
[CWX] Cutting Width Maximum (mm):
1.80
[DAXN] Minimum Face Groove Diameter (mm):
6.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
No Maximum
[DAXX] Maximum Face Groove Diameter (mm):
No Maximum
Primary Workpiece Material:
(P) Steel|(M) Stainless Steel
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
PVD Carbide PR1025 Grade Twin Bars (Vertical Type) provide efficient Micro Diameter Face Grooving of Steel and Stainless Steel
Feature 2:
6.00mm Minimum Face Groove Diameter
Feature 3:
Compatible with STWSR... Sleeves
ANSI Part Number:
TWFGTR180PR1025
ISO Part Number:
TWFGTR180
US Stock:
40
Worldwide Stock:
100
Number of Cutting Edges:
2
Old Material Number:
8826456
Compatible Toolholder (Partial):
STWSR...
[S] Thickness:
3/32"
[RE] Corner Radius:
0.002"
[INSL] Insert Length (Decimal Inch):
0.6299
[CW] Cutting Width (Decimal Inch):
0.0709
[CW] Cutting Width (mm):
1.80
[CDX] Max Depth of Cut (Decimal Inch):
0.1181
[CWN] Cutting Width Minimum (Decimal Inch):
0.0709
[CWX] Cutting Width Maximum (Decimal Inch):
0.0709
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
0.2362
