VBGW 221T00315ME KBN70M Grade CBN, Indexable Turning Insert
$73.42
(No reviews yet)
Write a Review
VBGW 221T00315ME KBN70M Grade CBN, Indexable Turning Insert
VBGW 221T00315ME KBN70M Grade CBN, 5 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Heavy Interruption and Finishing-Medium in Powdered Steel
- Tool Style:
- VBGW
- Insert Size:
- 221
- Insert Grade:
- KBN70M
- Material:
- CBN
- Coating Process:
- PVD

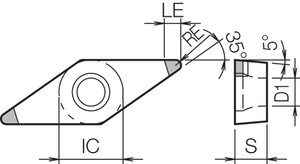

- [IC] Inscribed Circle (mm):
- 6.35
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.40
- Application:
- Back Boring|Copying|External Turning|Facing|Internal Facing|Profiling|Undercutting
- Hand:
- Neutral
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 35
- Primary Workpiece Material:
- Powdered Steel
- Insert Shape:
- 35 Degree Diamond
- Number of Cutting Edges:
- 2
- Usage Classification:
- Heavy Interruption
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Copying, Facing, Undercutting, Profiling, Internal Facing, Back Boring
- Feature 2:
- Multi-Edge with 2 Cutting Edges
- Feature 3:
- Heat-resistant MEGACOAT on CBN rich substrate
- Feature 4:
- Application: General cutting of sintered steel (ferrous sintered alloy) at high speed
- ANSI Part Number:
- VBGW221T00315MEKBN70M
- ISO Part Number:
- VBGW110304T00815ME
- US Stock:
- 10
- Worldwide Stock:
- 63
- Old Material Number:
- 8828619
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 1/4"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 1/64"
- [LE] CBN/PCD Tip Length (Decimal Inch):
- 0.0787
- [LE] CBN/PCD Tip Length (mm):
- 2.00
