VBGW 331T00315ME KBN05M Grade CBN, Indexable Turning Insert
$69.60
(No reviews yet)
Write a Review
VBGW 331T00315ME KBN05M Grade CBN, Indexable Turning Insert

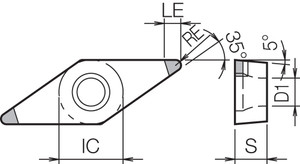

VBGW 331T00315ME KBN05M Grade CBN, 5 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials
- Tool Style:
- VBGW
- Insert Size:
- 331
- Insert Grade:
- KBN05M
- Material:
- CBN
- Coating Process:
- PVD
- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.40
- Application:
- Back Boring|Copying|External Turning|Facing|Internal Facing|Profiling|Undercutting
- Hand:
- Neutral
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 35
- Primary Workpiece Material:
- (H) Hardened Materials
- Insert Shape:
- 35 Degree Diamond
- Number of Cutting Edges:
- 2
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Copying, Facing, Undercutting, Profiling, Internal Facing, Back Boring
- Feature 2:
- Multi-Edge with 2 Cutting Edges
- Feature 3:
- Heat-resistant MEGACOAT on highly heat-resistant CBN substrate
- Feature 4:
- Application: High speed finishing of hardened steel
- ANSI Part Number:
- VBGW331T00315MEKBN05M
- ISO Part Number:
- VBGW160404T00815ME
- US Stock:
- 15
- Worldwide Stock:
- 273
- Old Material Number:
- 8832670
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/64"
- [LE] CBN/PCD Tip Length (Decimal Inch):
- 0.0787
- [LE] CBN/PCD Tip Length (mm):
- 2.00
