VNBR 072001 KW10 Grade Uncoated Carbide, Micro Boring Bar

VNBR 072001 KW10 Grade Uncoated Carbide, Micro Boring Bar

SKU:
TWE07343
$48.02
(No reviews yet)
Width:
2.95 (in)
Height:
0.39 (in)
Depth:
3.07 (in)
Current Stock:
Adding to cart… The item has been added
Description

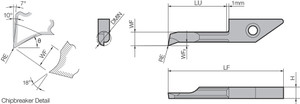

VNBR 072001 KW10 Grade, Right-Hand, Micro Bar with a 7.00mm Minimum Bore Diameter for (N) Non-Ferrous Materials Boring Applications
Additional Information
Tool Style:
VNB
Insert Grade:
KW10
Material:
Carbide
Coating Process:
Uncoated
[RE] Corner Radius (mm):
0.10
Application:
Micro Boring
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
100
[LU] Usable Length (mm):
20.00
Primary Workpiece Material:
(N) Non-Ferrous Materials
[DMIN] Minimum Bore Diameter (mm):
7.00
[H] Shank Height (mm):
3.90
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Swiss IQ Bar for micro boring applications
Feature 2:
With chipbreaker
Feature 3:
Compatible with SVNR…, SVNSR…, S…SVNR… style holders
ANSI Part Number:
VNBR072001KW10
ISO Part Number:
VNBR0720-01
Old Material Number:
8830766
Compatible Toolholder (Partial):
SVNR…, SVNSR…, S…SVNR…
[LF] Functional Length (mm):
39.80
[RE] Corner Radius:
0.004"
[LU] Usable Length (Decimal Inch):
0.7874
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.2756
[H] Shank Height (Decimal Inch):
0.1535
[LF] Functional Length (Decimal Inch):
1.5669
