VNGA 331S00525ME KBN010 Grade CBN, Indexable Turning Insert

VNGA 331S00525ME KBN010 Grade CBN, Indexable Turning Insert

SKU:
TFD00051
$73.09
(No reviews yet)
Width:
1.69 (in)
Height:
0.43 (in)
Depth:
2.36 (in)
Current Stock:
Adding to cart… The item has been added
Description
VNGA 331S00525ME KBN010 Grade CBN, 35 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous Machining of (H) Hardened Materials
Additional Information
Tool Style:
VNGA
Insert Size:
331
Insert Grade:
KBN010
Material:
CBN
Coating Process:
PVD

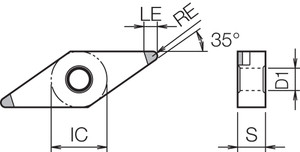

[IC] Inscribed Circle:
3/8"
[IC] Inscribed Circle (mm):
9.525
[S] Thickness:
3/16"
[S] Thickness (mm):
4.76
[RE] Corner Radius:
1/64"
[RE] Corner Radius (mm):
0.40
[LE] CBN/PCD Tip Length (Decimal Inch):
0.0787
[LE] CBN/PCD Tip Length (mm):
2.00
Application:
Copying|External Turning|Facing|Undercutting
Hand:
Neutral
Rake:
Negative
[EPSR] Insert Included Angle (Degree):
35
Primary Workpiece Material:
(H) Hardened Materials
Insert Shape:
35 Degree Diamond
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw or Clamp
ANSI Part Number:
VNGA331S00525MEKBN010
ISO Part Number:
VNGA160404S01225ME
Compatible Toolholder (Partial):
DVJNR...-3…|DVJNL...-3…|DVLNR...-16|DVLNL...-16|DVPNR...-3…|DVPNL...-3…|DVPNR...-16|DVPNL...-16|DVVNN...-16|MVJNR...-3…|MVJNL...-3…|MVLNR...-16|MVLNL...-16|MVVNN...-3...|PVLNR...-16...|PVLNL...-16...|PVPNR...-16…|PVPNL...-16…|PVVNN...-16…
