VNGA 332T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert
$31.03
(No reviews yet)
Write a Review
VNGA 332T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert
VNGA 332T00825 A65 Grade Uncoated Ceramic, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (K) Gray Cast Iron, (H) Hardened Materials
- Tool Style:
- VNGA
- Insert Size:
- 332
- Insert Grade:
- A65
- Material:
- Ceramic
- Coating Process:
- Uncoated

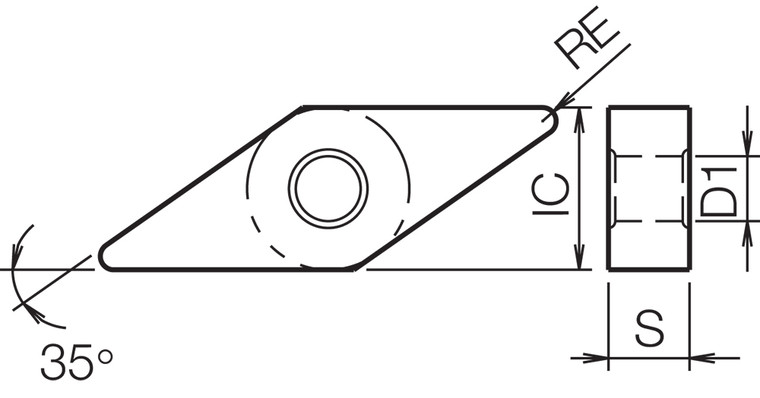

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.80
- Application:
- Copying|External Turning|Facing|Undercutting
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 35
- Primary Workpiece Material:
- (K) Gray Cast Iron|(H) Hardened Materials
- Insert Shape:
- 35 Degree Diamond
- Number of Cutting Edges:
- 4
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Copying, Facing, Undercutting
- Feature 2:
- 4 Cutting Edges
- Feature 3:
- Aluminum oxide and titanium carbide ceramic (Al2O3+TiC)
- Feature 4:
- Application: Semi-roughing to finishing of steel, cast iron, and hard materials
- ANSI Part Number:
- VNGA332T00825A65
- ISO Part Number:
- VNGA160408T02025
- US Stock:
- 250
- Worldwide Stock:
- 50
- Old Material Number:
- 8804326
- Compatible Toolholder (Partial):
- DVJNR...-3…|DVJNL...-3…|DVLNR...-16|DVLNL...-16|DVPNR...-3…|DVPNL...-3…|DVPNR...-16|DVPNL...-16|DVVNN...-16|MVJNR...-3…|MVJNL...-3…|MVLNR...-16|MVLNL...-16|MVVNN...-3...|PVLNR...-16...|PVLNL...-16...|PVPNR...-16…|PVPNL...-16…|PVVNN...-16…
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/32"
