VNGR 041011 PR930 Grade PVD Carbide, Micro Internal Grooving Bar

VNGR 041011 PR930 Grade PVD Carbide, Micro Internal Grooving Bar

SKU:
TKT09370
|
UPC:
4960664221820
$78.94
(No reviews yet)
Width:
2.95 (in)
Height:
0.39 (in)
Depth:
3.07 (in)
Current Stock:
Adding to cart… The item has been added
Description
VNGR 041011 PR930 Grade PVD Carbide, Micro Internal Grooving Bar with a 4.00mm Minimum Bore Diameter for (P) Carbon Steel / Alloy Steel, (M) Stainless Steel, (H) Hardened Materials Applications
Additional Information
Tool Style:
VNGR
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

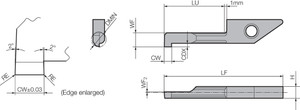

[RE] Corner Radius (mm):
0.05
Grooving Type:
Internal Grooving
Application:
Micro Internal Grooving
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
92
[CDX] Max Depth of Cut (mm):
0.80
[CWN] Cutting Width Minimum (mm):
1.00
[CWX] Cutting Width Maximum (mm):
1.00
[LU] Usable Length (mm):
11.00
Primary Workpiece Material:
(M) Stainless Steel
[DMIN] Minimum Bore Diameter (mm):
4.00
[H] Shank Height (mm):
3.90
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Swiss IQ Bar for micro boring applications
Feature 2:
Compatible with SVNR…, SVNSR…-11, SVNSR…-11N, S…SVNR… style toolholders
ANSI Part Number:
VNGR041011PR930
ISO Part Number:
VNGR0410-11
US Stock:
0
Worldwide Stock:
35
Number of Cutting Edges:
1
Old Material Number:
8803813
Compatible Toolholder (Partial):
SVNR…, SVNSR…-11, SVNSR…-11N, S…SVNR…
[LF] Functional Length (mm):
30.80
[RE] Corner Radius:
0.002"
[CW] Cutting Width (Decimal Inch):
0.0394
[CW] Cutting Width (mm):
1.00
[CDX] Max Depth of Cut (Decimal Inch):
0.0315
[CWN] Cutting Width Minimum (Decimal Inch):
0.0394
[CWX] Cutting Width Maximum (Decimal Inch):
0.0394
[LU] Usable Length (Decimal Inch):
0.4331
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.1575
[H] Shank Height (Decimal Inch):
0.1535
[LF] Functional Length (Decimal Inch):
1.2126
