WBGW 12105L TN60 Grade Uncoated Cermet, Indexable Turning Insert
$22.77
(No reviews yet)
Write a Review
WBGW 12105L TN60 Grade Uncoated Cermet, Indexable Turning Insert
WBGW 12105L TN60 Grade Uncoated Cermet, 5 Degree, Trigon, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel
- Tool Style:
- WBGW
- Insert Size:
- 12105
- Insert Grade:
- TN60
- Material:
- Cermet
- Coating Process:
- Uncoated

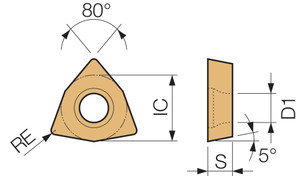

- [IC] Inscribed Circle (mm):
- 3.97
- [S] Thickness (mm):
- 1.59
- [RE] Corner Radius (mm):
- 0.20
- Application:
- Boring|Internal Facing
- Hand:
- Left-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 80
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Insert Shape:
- 80 Degree Trigon
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Cutting Range:
- Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for Boring, Internal Facing
- Feature 2:
- 3 Cutting Edges
- Feature 3:
- General purpose cermet with superior wear resistance and toughness
- Feature 4:
- Application: Cutting of steel and stainless steel
- ANSI Part Number:
- WBGW12105LTN60
- ISO Part Number:
- WBGW060102L
- Old Material Number:
- 8816229
- Compatible Toolholder (Partial):
- ...-SWUBR1.2AE..., ...-SWUBR06-..., ...-SWUBR1.2
- [IC] Inscribed Circle:
- 5/32"
- [S] Thickness:
- 1/16"
- [RE] Corner Radius:
- 0.008"
