WCMX 06T308M1 CA6535 Grade CVD Carbide, Indexable Drilling Insert
$16.32
(No reviews yet)
Write a Review
WCMX 06T308M1 CA6535 Grade CVD Carbide, Indexable Drilling Insert
WCMX 06T308M1 CA6535 Grade CVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel and (S) Heat-Resistant Alloy (Holeshot Drill & Coremaster Coredrill)
- Tool Style:
- WCMX
- Insert Size:
- 06T308
- Chipbreaker:
- M1
- Insert Grade:
- CA6535
- Material:
- Carbide
- Coating Process:
- CVD

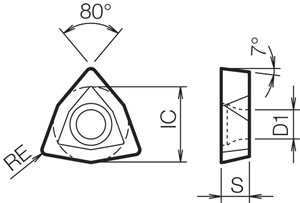

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.97
- [RE] Corner Radius (mm):
- 0.80
- Application:
- Drilling
- Hand:
- Right-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 80
- Primary Workpiece Material:
- (M) Stainless Steel
- Insert Shape:
- 80 Degree Trigon
- Number of Cutting Edges:
- 3
- Insert Holding Method:
- Screw
- Feature 1:
- Insert for drilling and coredrilling
- Feature 2:
- High heat resistance and wear resistance with CVD coating with improved stability due to thin film coating
- Feature 3:
- Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel
- ANSI Part Number:
- WCMX06T308M1CA6535
- ISO Part Number:
- WCMX06T308M1CA6535
- US Stock:
- 750
- Worldwide Stock:
- 0
- Old Material Number:
- 8858936
- Compatible Toolholder (Partial):
- DR-1181... ~ DR-4000…, CD-1115... ~ CD-3000…
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 5/32"
- [RE] Corner Radius:
- 1/32"
